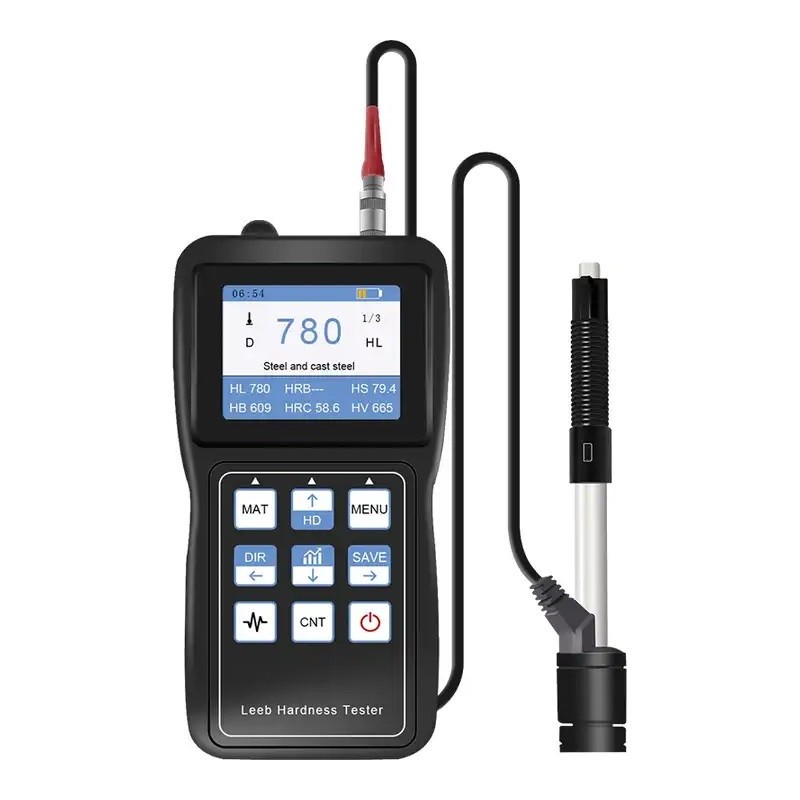

OLH300 Advanced Colour Screen Leeb Hardness Tester
Reference: OLH300
Portable Leeb Metal Hardness Tester for metals with multi-parameter and graphic colour LCD. Hardness testing of various metals like steel and cast steel, tool steel (CWT), stainless steel, cast iron, cast aluminium, brass, copper etc. Conversion to common hardness scales Brinell hardness (HB), Rockwell B and C hardness (HRB/HRC), Shore hardness (HS) and Vickers hardness (HV)
More info
- High brightness graphic full colour LCD screen

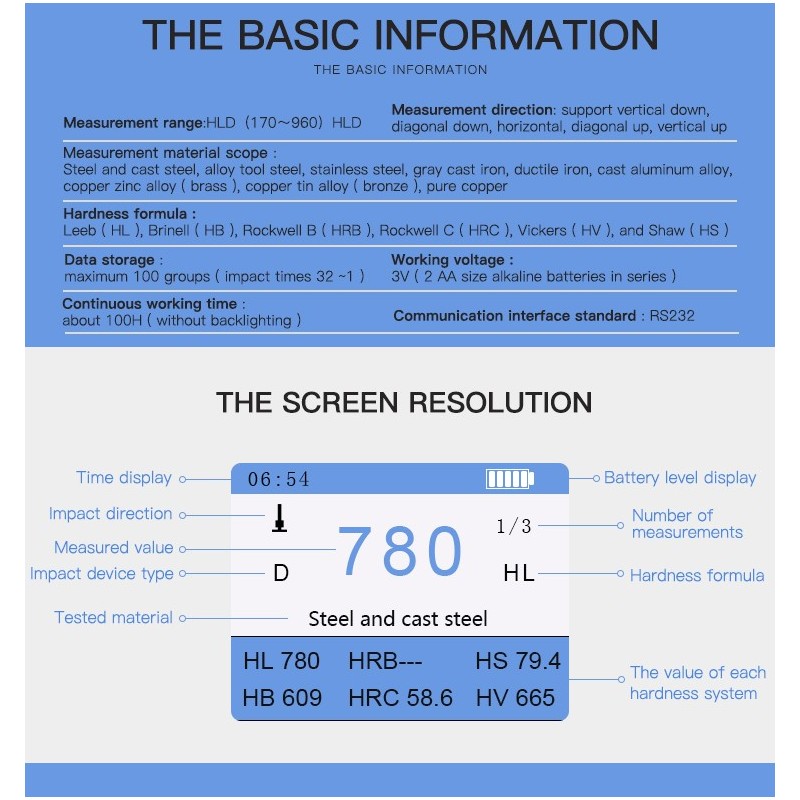

- Multi-parameter display, bargraph and impact device waveform
- High performance fast processing using ARM processor with Cortex-M4 chip
- Measuring range: 170 ~ 960 HLD (Impact device dependent)
- Accuracy: Display error ±6 HLD
- Measuring average: 1 ~ 32 times adjustable
- Conversions: HL - HRC - HRB - HB - HV - HS - Tensile Strength (UTS)
- Includes impact device D for majority of hardness testing applications
- Impact direction: Test at any angle (manual setting)
- Minimum unsupported work piece 5kg and 5mm thickness (D device)
- Materials: 10 types of common metals
- Memory: 100 groups of data (measured value, impact times, average, impact direction, material)
- Interface: USB (software included)
- User re-calibration function with test block
- c/w case, D device, cable, test block, support ring (small & large), brush, USB cable, software, batteries and manual
Optional Impact Devices - D/C/DC/D+15/DL/E/G
Download
OLH300 Hardness Tester Software
Download (29.11M)OLH300 Portable Leeb Hardness Tester Data sheet
Download (352.8k)OLH300 Portable Leeb Hardness Tester User Manual
Download (1.13M)
