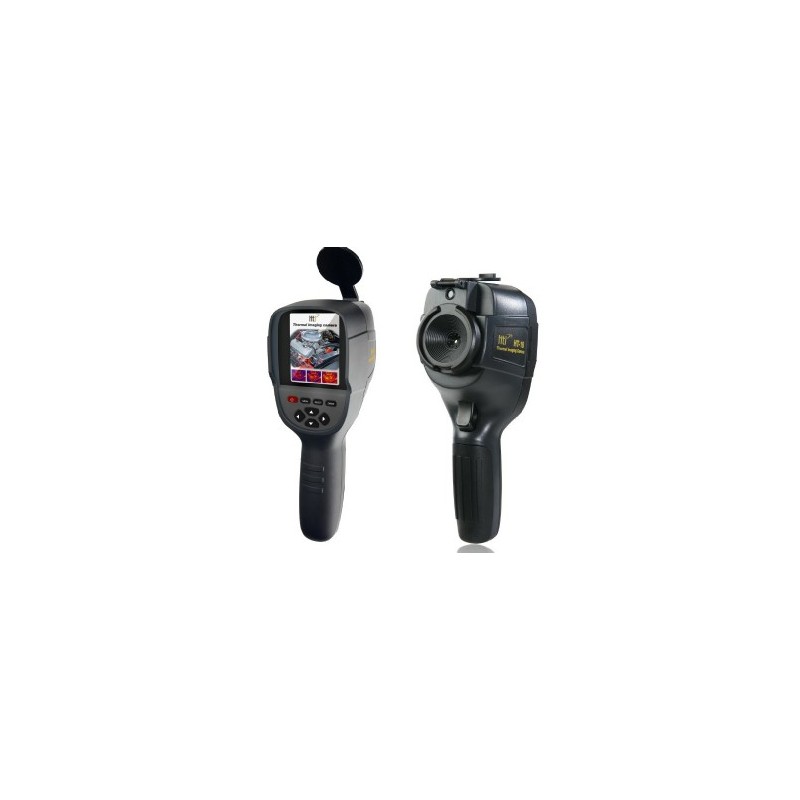

HT-18+ Thermal Imaging Camera

Reference: HT-18+

Digital Infrared Thermal Imaging Camera / Thermal Imager

More info

  •          Display Screen: 3.2” Full angle TFT colour LCD
  •          Visual Image: 640 x 480 (0.3MP)
  •          IR Thermal Image: 256 x 192 (49,152 pixels)
  •          IR Detector: Vanadium Oxide uncooled infrared focal plane
  •          Cell Size: 12µm
  •          Lens Focal Length: 3.2mm / Fixed focus
  •          NETD: ≤50mK @ 25℃ / F/1.1
  •          Field Angle: 56° x 42°/ IFOV3.75mrad
  •          Image Refresh Rate: ≤25Hz
  •          Range: -20°C to +550°C (split in two ranges Low/High)
  •          Accuracy: ±2% rdg. or ±2°C (whichever is greater)
  •          Resolution: 0.1°C
  •          Emissivity Adjustable: 0.10~1.00
  •          Spectral Response: 8~14µm
  •          Centre point and Hot/Cold spot markers
  •          Colour Palettes: Rainbow, Iron Oxide, Cold, Black & White, White & Black
  •          Thermal and Visual image fusion in 25% steps
  •          Memory: Built-in 4GB memory
  •          Image Format: JPEG / MP4
  •          USB port for image and video download
  •          Software included (free download)
  •          Power Supply: Rechargeable 18650 Li-Ion battery
  •          c/w carry case, USB cable, battery and manual
