New

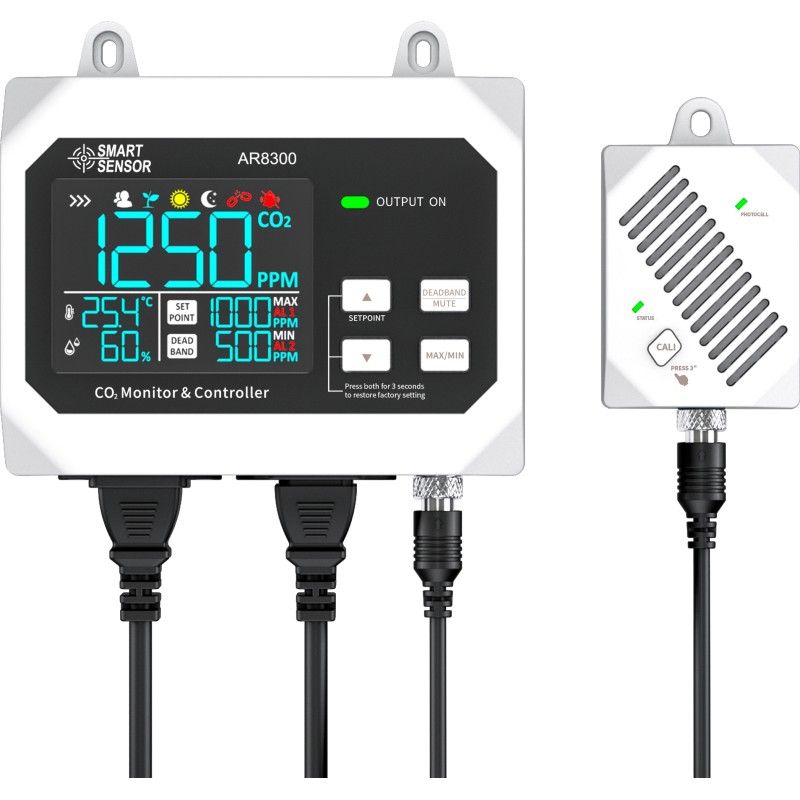

AR8300 CO2 Monitor, Alarm and Controller with Humidity & Temperature
Reference: AR8300
Monitor, alarm and control CO2 levels in ambient air for breeding houses, incubators, greenhouses, growing rooms, laboratories, hospitals, work places, basements or any other place where monitoring of ambient IAQ CO2 levels is required
Note: This CO2 monitor is not intended for hazardous CO2 level monitoring, human and animal safety or as a medical related device
More info
- CO2 range: 0~9,999 ppm
- Accuracy: ±50ppm or ±5% reading
- Dual wavelength NDIR CO2 sensor for superior stability
- Fresh air CO2 calibration at 400ppm
- Audible and visual CO2 alarm
- Relay output, NO contact rated AC250V 10A
- Relative humidity: 0~99% (accuracy ±3%) non-condensing
- Temperature: 0~+50°C (accuracy ±0.5°C)
- Human mode has two alarm setpoints
- Plant mode has one setpoint and deadband setting
- Automatic day/night detection
- Min/Max CO2 memory with reset
- Automatic pressure compensation
- Applicable standard JJG635-2011
- Power supply AC100~300V
- Main unit: 164 x 147 x 47mm
- Sensor: 63 x 99 x 28mm
- Supplied with main controller unit, sensor, 4.6m sensor cable, 1.5m power cable, 1.5m relay output cable and manual
Download
AR8300 CO2 Monitor, Alarm and Controller User Manual
Download (1.4M)
