New

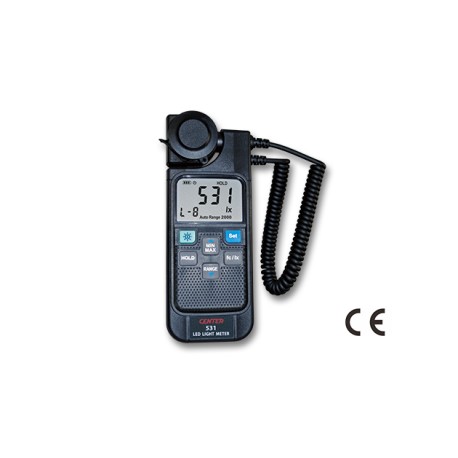

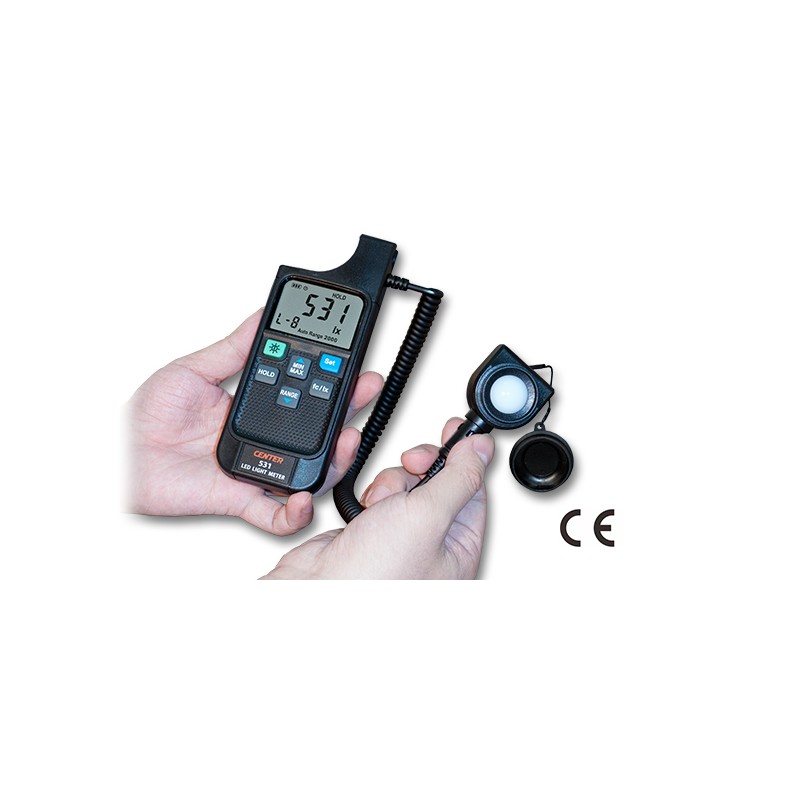

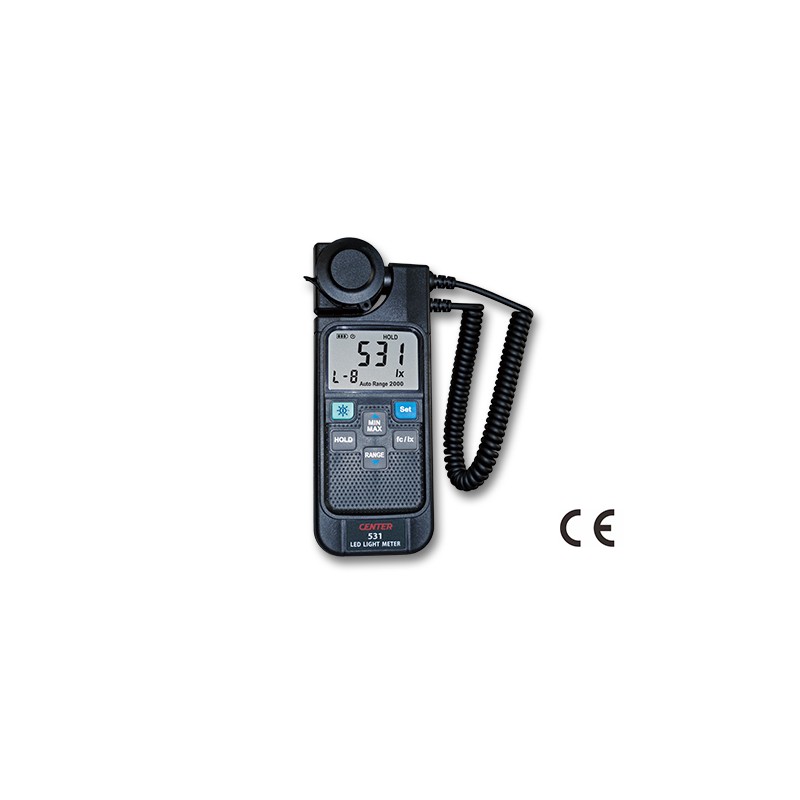

C531 Digital Light Lux Meter including LED (White & Coloured)
Reference: C531
C531 Digital Light Lux Meter including settings for standard incandescent, LED (White & Coloured), fluorescent and special light sources
More info
- All visible light and a variety of LED, Fluorescent or special (user) light sources
- Measuring intensities of illumination in Lux or Foot-candles
- Spectral response close to CIE luminous spectral efficiency
- Silicon photo-diode sensor with spectral response filter
- Measured spectral range: 400 ~ 700nm
- Cosine and colour corrected measurement
- Auto Zero Adjustment
- Large backlit LCD display
- Max/Min and Hold functions
- c/w carry case, sensor cover and batteries
| Ranges: | 0.0 to 199.9/1999/19990/199900 Lux 0.00 to 19.99/199.9/1999/19990 Foot-Candle |
| Accuracy: | ±3%rdg, ±5dgts (standard A light source) ±8% for other visible light sources |
| Angle deviation from cosine characteristics : | 10° ±1% / 30° ±2% / 60° ±5% / 80° ±20% |
Light Source Selection
| L0 - Standard Incandescent Light | L5 - LED BLUE light |
| L1 - LED white daylight (5000K) | L6 - Warm White Fluorescent Lamp (2700K) |
| L2 - LED AMBER (YELLOW) light (3000K) | L7 - Cold White Fluorescent Lamp (6500K) |
| L3 - LED GREEN light | L8 - Special user defined |
| L4 - LED RED light |
Download
C531 Digital Light Lux Meter Data Sheet
Download (1.23M)C531 Digital Light Lux Meter User Manual
Download (1.05M)
