HP2553CA Wireless Weather Station Kit with Ultrasonic Anemometer

Reference: HP2553CA

Coming Soon!!! - available end January 2025

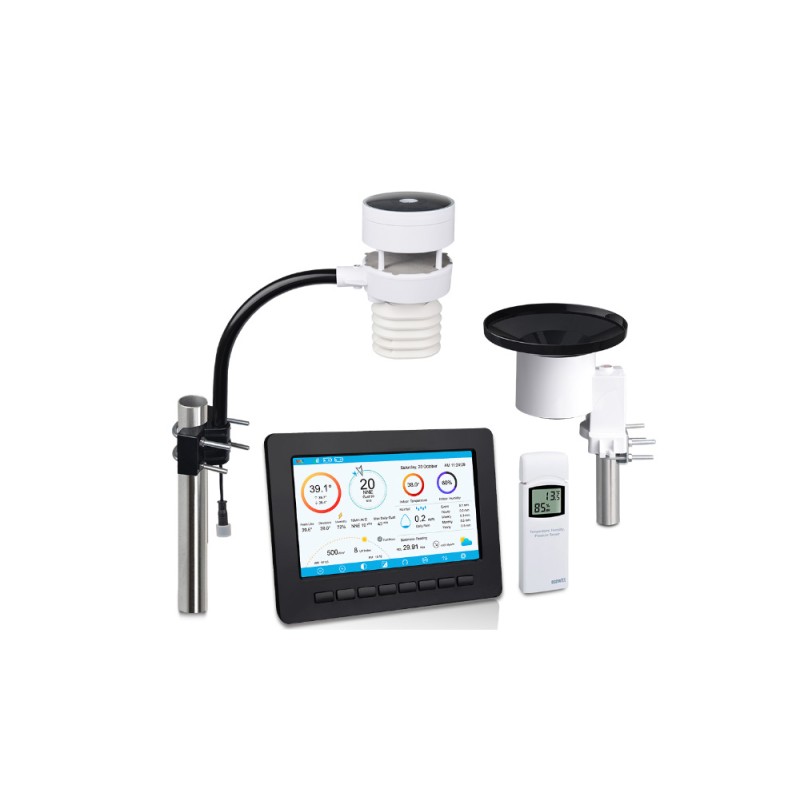

HP2553CA Wireless Weather Station Kit with Wi-Fi and Ultrasonic Anemometer (No moving parts)

ICASA Type Approval Certificate Pending

More info

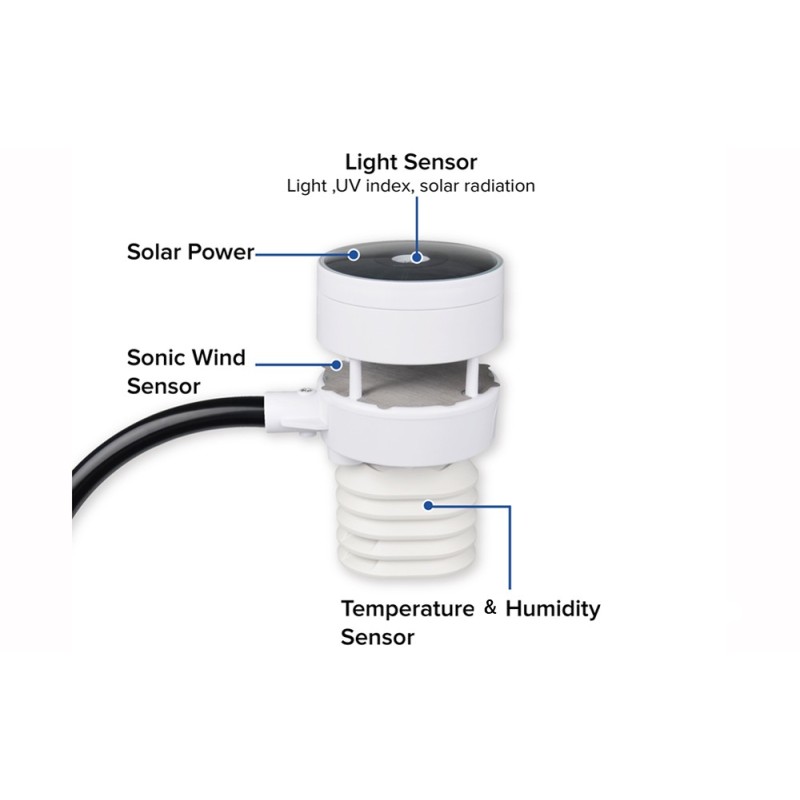

  • Ultrasonic Anemometer for wind speed & direction with no moving parts

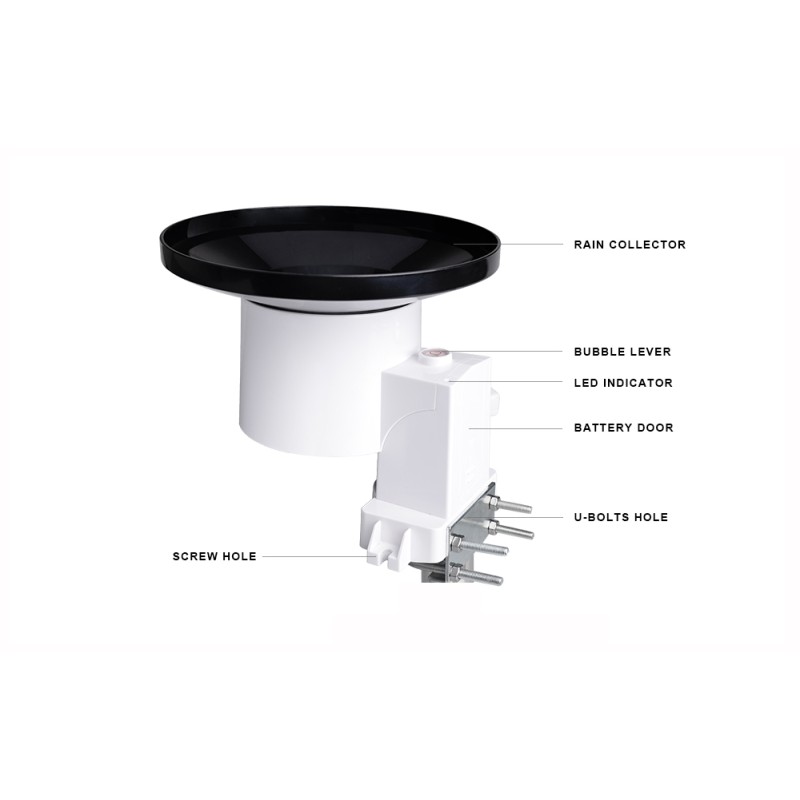

  • Separate large area rain gauge for better accuracy and 0.1mm resolution
  • Built-in Wi-Fi for upload of live data to the Internet **
  • Four pre-configured web servers, some available with Apps
  • Sensors 433MHz transmission with range up to 200m line of sight
  • 7” Colour TFT display with real-time graphing / trends and alarms
  • User calibration offset adjustment with restore to factory default
  • Weather tendency forecast based on rate of change in pressure
  • Records minimum and maximum values with date and time
  • Update time from outdoor sensor is approx. every 4.8s seconds (48s for rain)
  • Compact outdoor sensor array with solar panel / supercap power
  • Remote indoor sensor with temperature, humidity and pressure
  • 16MB On-board memory for standard sensor data recording
  • Extended data recording to microSD card (card NOT included)
  • USB port for Operating System updates only (return to supplier)
  • Console requires 5V/1A DC power (AC/DC mains adapter included)

NB!! Mounting poles for outdoor sensor and rain gauge are NOT included, use any 40~50mm diameter pole

** Wi-Fi network and Internet connection required

Accessories

Download

HP2553CA Wireless Weather Station Kit with Ultrasonic Anemometer User's Manual

Download (6.99M)

WS80 Ultrasonic Sensor User Manual (for HP2553CA)

Download (709.16k)

WH40 Large Area Rain Guage User Manual (for HP2553CA)

Download (1.05M)
