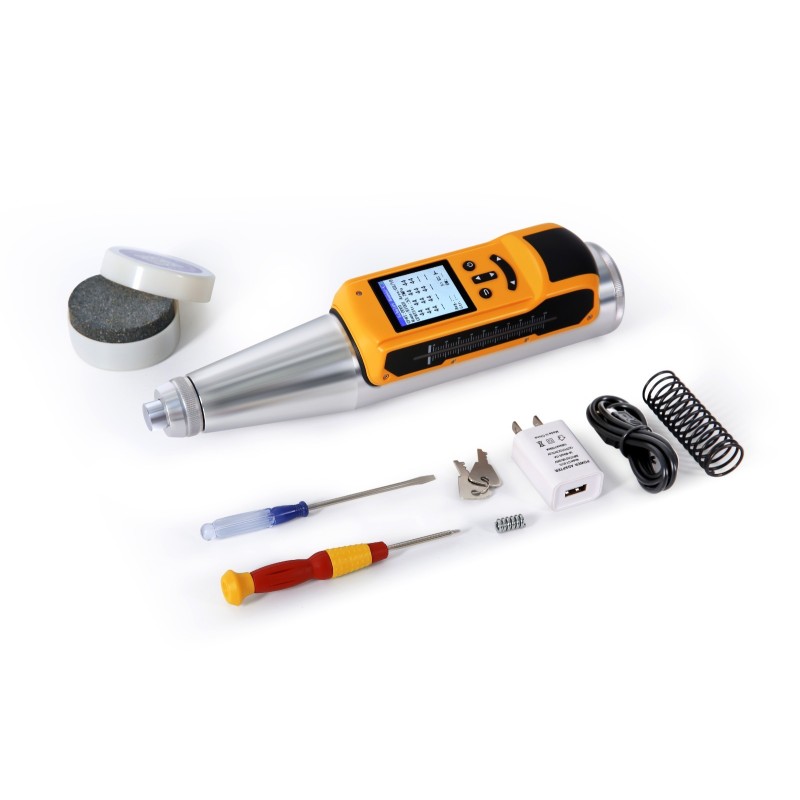

TEM912 Digital Concrete Test Hammer (Type N)
Reference: TEM912
TEM912 Digital Concrete Test Hammer (Type N)
More info
Technical Specification:
|
Measuring range |
10 ~ 70 MPa |
||
|
Impact energy |
2.207 J |
||
|
Spring extension |
75 ±0.3mm |
||
|
Display size |
2 inches (220x176 pixels) |
||
|
Error range for display |
≤ ±1 (difference between display & slider) |
||
|
Radius of spherical tip |
25 ±1.0mm |
||
|
Memory |
2000 Readings |
||
|
Mean value of steel-anvil rating |
80 ±2 |
||
|
Flip tension spring rigidity |
785.0 ±40.0Nm |
||
|
Operating temperature |
0ºC ~ +40ºC |
||
|
Power supply |
Rechargeable 3.7V Lithium battery |
||
|
Dimensions |
Hammer |
150mm × 62mm x39mm |
|
|
With case |
350mm x 80mm x 120mm |
||
|
Weight |
Hammer |
1.0Kg |
|
|
With case |
2.2Kg |
||
|
Accessories |
carry case, spare spring, grinding stone, screw driver, USB cable, AC adaptor and manual |
||
