TH-01 Concrete Test Hammer (Type N)
Reference: TH-01
Concrete Tester Hammer using the Rebound or Impact method to measure surface hardness and estimate the compressive strength of concrete
More info
Technical Specification:
|
Measuring range |
10 ~ 70 MPa |
||
|
Impact energy |
2.207 J |
||
|
Spring extension |
75 ±0.3mm |
||
|
Friction of pointer system |
0.65 ±0.15Nm |
||
|
Length of pointer |
20.0 ±0.2mm |
||
|
Radius of spherical tip |
25 ±1.0mm |
||
|
Working length of the spring |
61.5 ±0.3mm |
||
|
Mean value of steel-anvil rating |
80 ±2 |
||
|
Flip tension spring rigidity |
785.0 ±40.0Nm |
||
|
Operating temperature |
0ºC ~ +40ºC |
||
|
Storage temperature |
-10ºC ~ +50ºC |
||
|
Dimensions |
Hammer |
280mm × 60mm diam. |
|
|
With case |
320mm x 170mm x 86mm |
||
|
Weight |
Hammer |
1.0Kg |
|
|
With case |
2.2Kg |
||
|
Accessories |

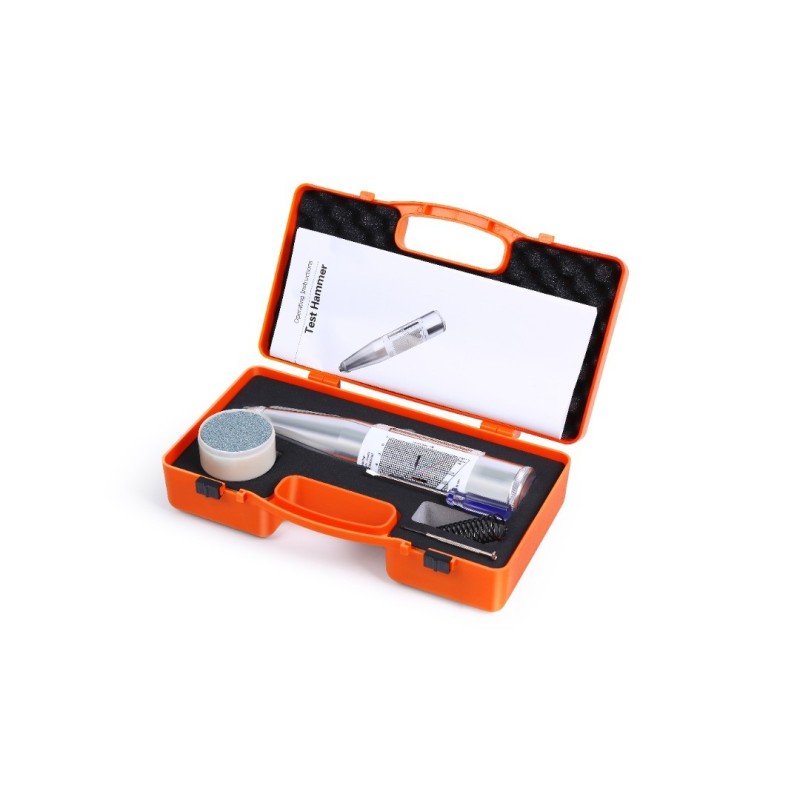

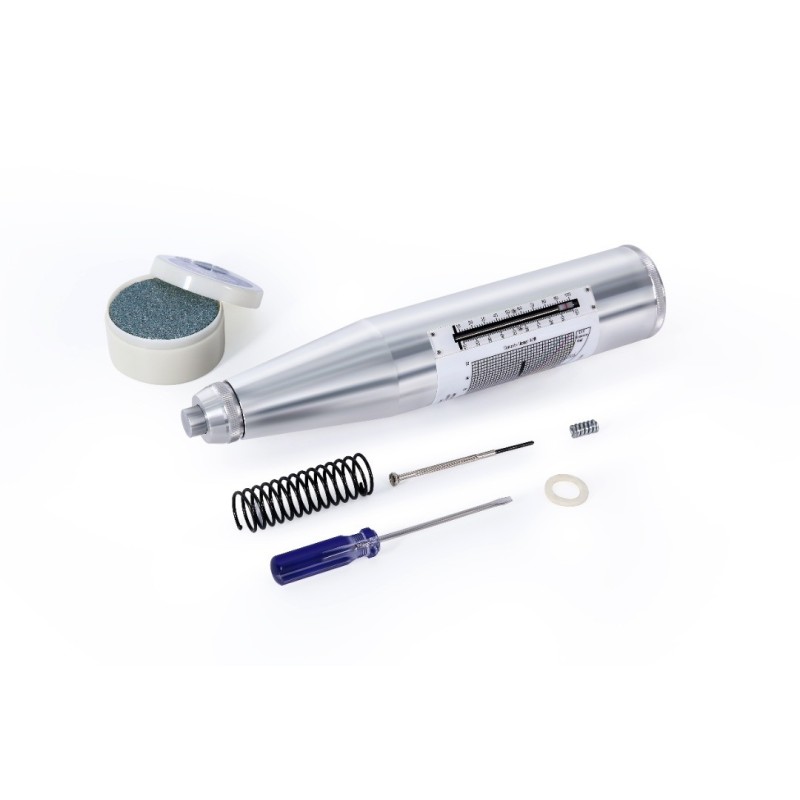

carry case, spare spring, grinding stone, screw drivers and manual |
||
