SSR100 Pocket Type Surface Roughness Tester
Reference: SSR100

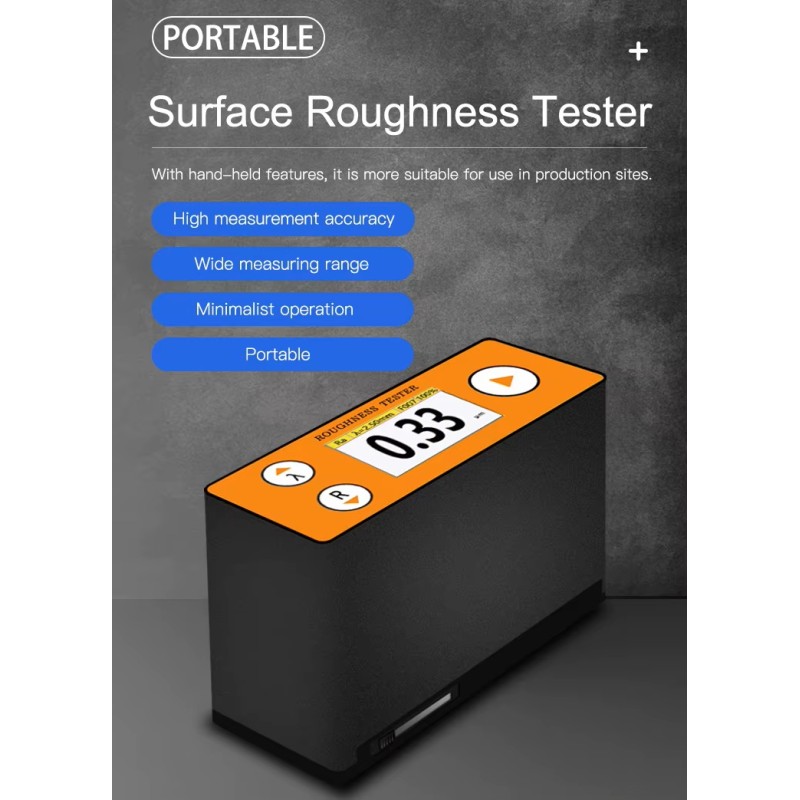

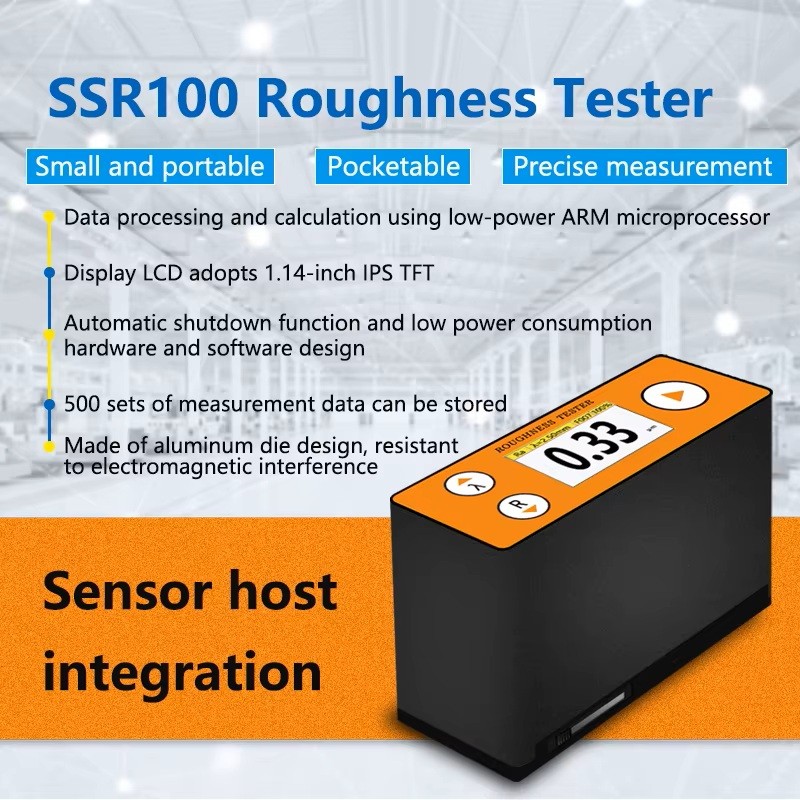

SSR100 Pocket Type Surface Roughness Tester
More info
- Small and compact size
- Ra, Rq: 0.05 ~ 10.00µm
- Rz, Rt: 0.10 ~ 50.0µm
- Error of indication ≤±10%
- Piezocrystal sensor 10.0±1μm / 90°
- Sample length: 0.25, 0.8 or 2.5mm
- Tracing Speed: 1 mm/s
- Stroke Length: 5.6mm
- Evaluation Length: 1.25mm, 4mm
- Display 1.14" IPS TFT colour LCD
- Memory for 500 sets of measurement data
- Mobile APP for live view, data download and saving
- Power: One 1.5V AA Alkaline battery
- Size: 73×28×62mm and approx. 220g
- c/w storage box, calibration block, battery and manual
Download
SSR100 Pocket Surface Roughness Tester
Download (401.56k)
