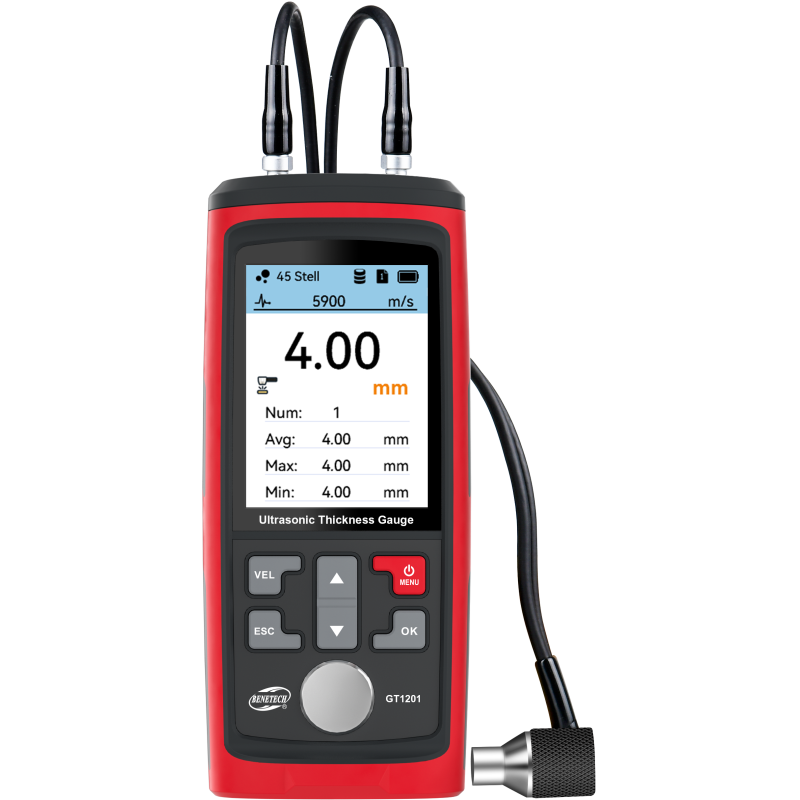

GT1201 Ultrasonic Thickness Gauge
Reference: GT1201
GT1201 Ultrasonic Thickness Gauge
More info
- Range: 1.00 ~ 300.0mm (in steel)
- Range is material and probe dependant
- Tolerance ±(0.5% Thickness +0.05)mm depending on conditions
- Velocity: 1000 m/s ~ 9999 m/s
- Resolution: 0.01mm up to 99.99 / 0.1mm over 100.0
- Auto calibration with built-in 4mm block and coupling status
- High / Low limit setting
- 1500 Reading memory, PC software available
- Built-in 3.7V rechargeable battery
- c/w carry case, 5Md10 probe, coupling agent, USB cable and manual
Optional probes available:
GT5Md6 small diameter 6mm probe
High temperature probe (max 300°C)
2MHz probe for castings, high scatter or rough surfaces
