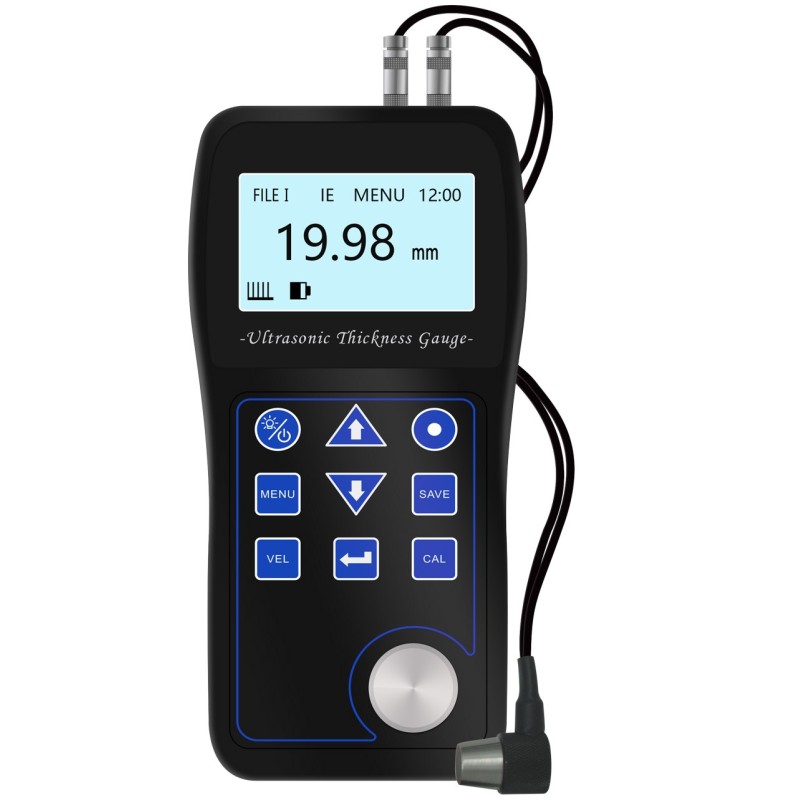

UT200 Through Coating Ultrasonic Thickness Gauge
Reference: UT200
UT200 Through Coating Ultrasonic Thickness Gauge

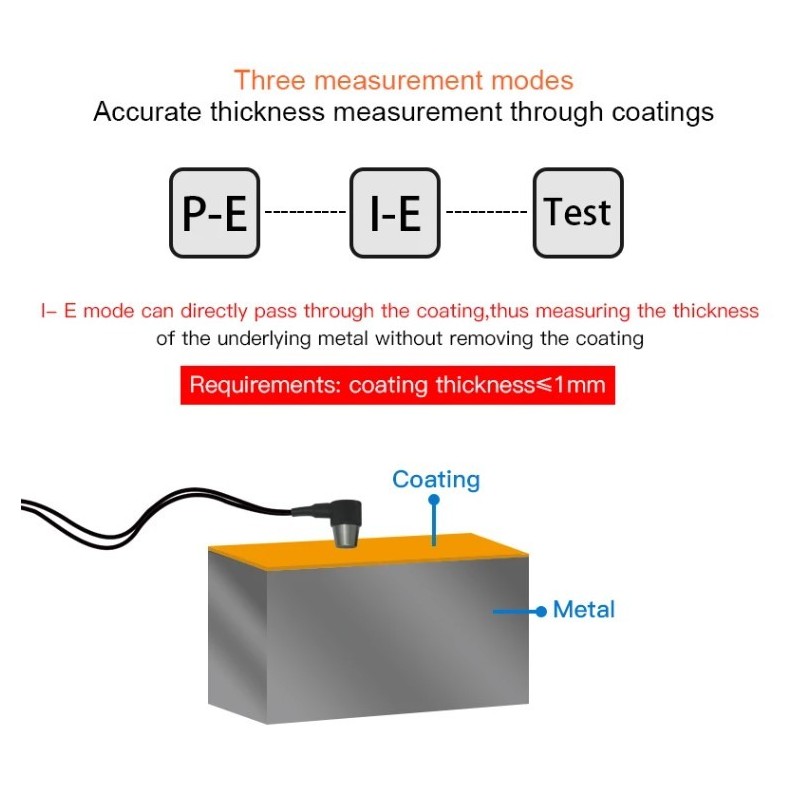

This gauge adopts the interface echo / bottom echo difference (IE) and the pulse reflection (PE) principle to measure the thickness of a material through the coating. Accurately measure various plates, vessels, pipes and other processed parts used in mining, construction, automotive, metallurgy, shipbuilding, aviation, aerospace and other fields
More info
- Range P-E: 0.75 ~ 500.0mm (in steel)
- Through Coating I-E: 1.00 ~ 75.00mm (maximum 1mm coating)
- Range is material and probe dependent
- Error: H<10mm ±0.04mm / H≥10mm ±0.4%H (depending on conditions)
- Velocity: 1000 m/s ~ 9999 m/s
- Sound velocity measurement by known thickness
- Resolution: 0.01mm or 0.1mm selectable
- Auto calibration with built-in 4mm block and coupling status
- Test function for checking the purity of precious metals
- USB port with 500 Reading memory
- Power 2 x AA alkaline batteries
- c/w carry case, 5MHz right angled probe, coupling agent, USB cable, software license, batteries and manual
Optional probes available:
High temperature probe (max 300°C)
7MHz for thin material and small arc surfaces
2MHz for castings, high scatter or rough surface
