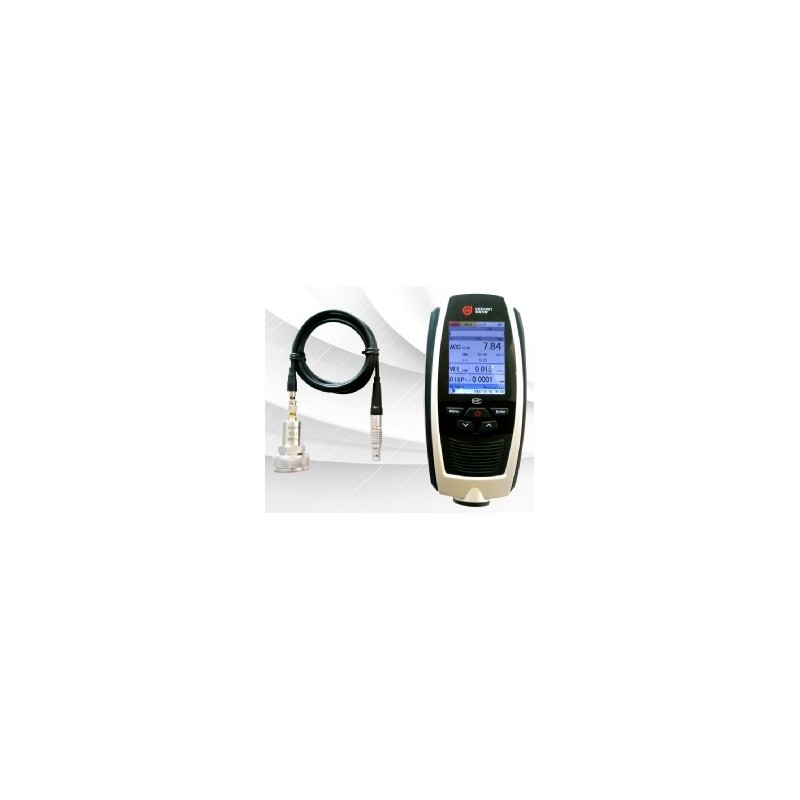

KV-3000 Portable Vibration Meter with basic FFT
Reference: KV-3000
KV-3000 Portable Vibration Meter with basic FFT
More info
- Single Axis Piezoelectric Accelerometer
- FFT list displays 7 highest frequencies to assist with fault diagnosis
- Acceleration (Peak): 0.1~392.0 m/s² (10Hz~10KHz)
- Velocity (RMS): 0.01~80.00 cm/sec (10Hz~1000Hz)
- Displacement (P-P): 0.001~10.000 mm (10Hz~500Hz)
- Also shows Acceleration RMS and CF (Crest Factor) values
- Display: 2.4” Colour TFT backlit LCD 320×240 pixels
- Memory: 99 groups (50 data and one spectrum list per group)
- Alarm warning limit setting with on screen bargraph indicator
- Power: 2 x AA size batteries (Alkaline or rechargeable)
- Optional printer available to print memory data
- c/w carry case, accelerometer, cable, magnet and rechargeable batteries
