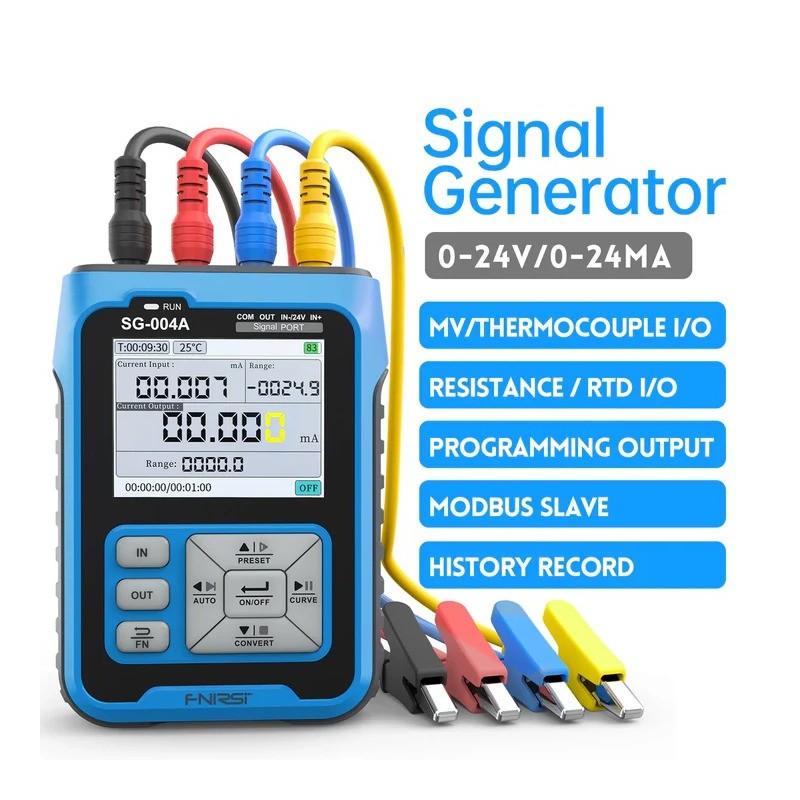

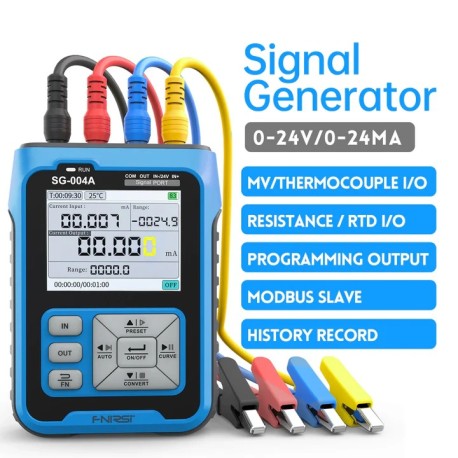

SG-004A Multifunction Signal Calibrator

Reference: SG-004A

SG-004A Multifunction Signal Calibrator, simultaneously read and source various common instrument signals. mA Loop calibrator, mV and DCV, Thermocouples, RTD PT100, Resistance (ohms) and frequency (Hz) all in one compact configurable multifunction unit. 12V/24V loop power selectable, programmable stepping and ramp function, graphic colour LCD, real-time trend graph and memory for 100,000 records

More info

  • Comprehensive functions in a compact pocket size calibrator
  • 5 Digit graphic and backlit 2.4” TFT full colour LCD screen
  • Functions: mV, V, mA, Hz, Ohms, PT100 and Thermocouples
  • Read and Source signals simultaneously
  • mA: 0.000 ~ 24.000mA (Active and Passive XMT)
  • Loop power 24V DC ±10%, max 24mA (Can be set to 12V)
  • mV DC: -10.00 ~ 100.00mV
  • V DC: 0.000 ~ 24.000V
  • Frequency/PWM: 0 ~ 9999Hz
  • Thermocouple types: K/J/E/T/R/S/B/N
  • PT100: -200.0 ~ 650.0ºC
  • Resistance: 0.0 ~ 390.0Ω
  • Programmable output, Stepping (25% steps) and Ramp functions
  • Power: Built-in 3.7V 3000mAh rechargeable battery (up to 10 hours use)
  • Size: 112 x 82 x 28mm and approx. 167g
  • c/w 4 x leads with clips, USB-C cable, charger and manual
