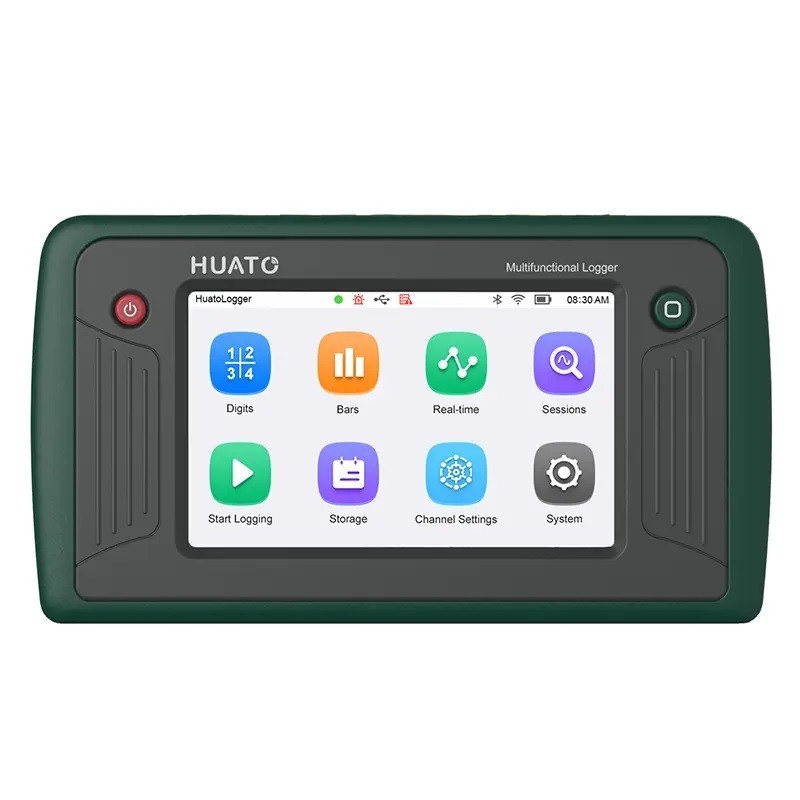

S1516U Sixteen Channel Graphic Multi-Function Data Logger

Reference: S1516U

S1516U Sixteen Channel Graphic Multi-Function Data Logger and Paperless Recorder

Programmable inputs and scaling in engineering units for most common process signals

More info

  • Sixteen inputs, each channel individually configurable
  • DCV: 0~100mV, 0-5V, 1-5V or 0-10V
  • DC mA: 0~10mA, 0-20mA or 4-20mA
  • Frequency and Pulse/Count: 0~25KHz / 4,000,000,000 pulses (only on channel 1)
  • Thermocouple K, J, E, T, R, S, N, B or C types
  • PT100 2/3/4 wire (Note: if 3 or 4 wire connection then limited to 8 channels)
  • Screw terminal connections
  • Memory capacity: 32GB internal storage for 5 million records

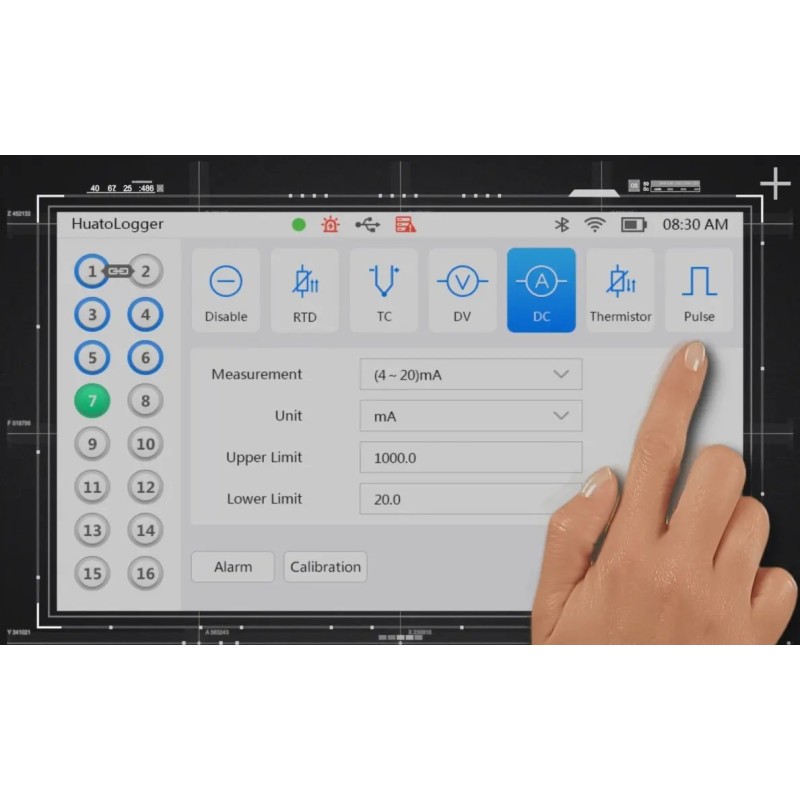

  • Multi-parameter 5" capacitive touchscreen LCD display
  • Multi-channel digital display, bar chart or real-time graph
  • Fast sampling and logging rate programmable from 1 second
  • CSV file data transfer to U-Disk or microSD card
  • RJ45 Ethernet port for LAN web interface connection
  • Portable size - 190 x 104 x 39mm (With protective sleeve)
  • 5000mAh rechargeable battery for backup
  • c/w carry case, USB cable and AC adapter
