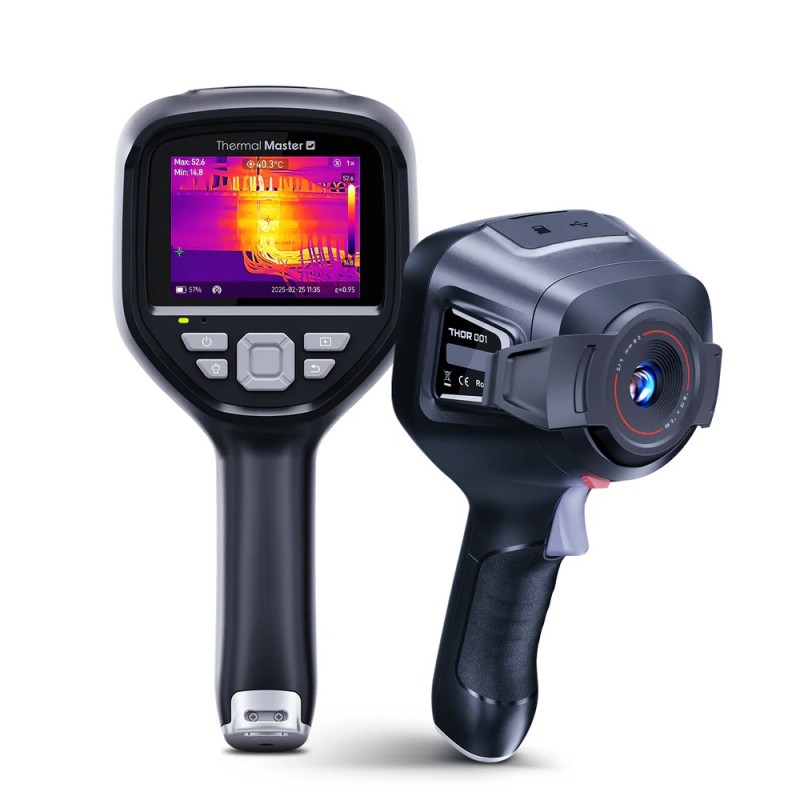

THOR001 Thermal Imaging Camera

Reference: THOR001

THOR001 Handheld Thermal Imaging Camera, High Range up to 550°C, 3.5'' 640×480 IPS Display, X³ Super Resolution 512×384, ±1.5°C Accuracy with Detachable Macro Lens

More info

  •          Display Screen: 3.5” IPS (640x480 resolution/60Hz)
  •          Visual Image: 200W 1616×1232 (2MP)
  •          IR Thermal Image: 256x192

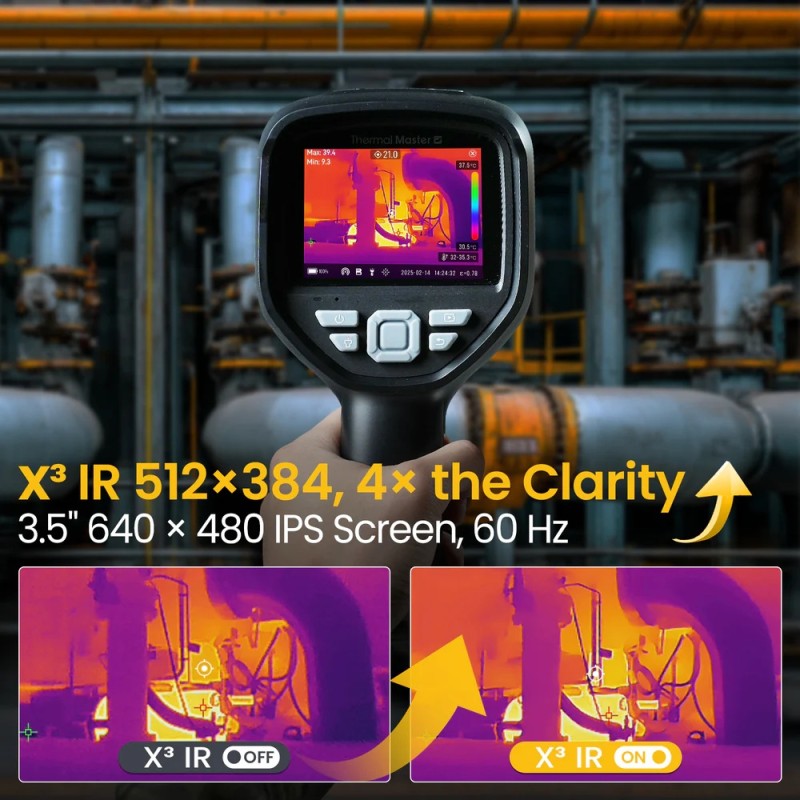

  •          X³ AI Super IR Resolution: 512×384
  •          IR Detector: Thermal Master® High-Sensitivity Sensor
  •          Pixel Pitch: 12µm
  •          Lens Focal Length: 4.3mm/Fixed focus (min 0.3m)
  •          NETD/Thermal Sensitivity: <35mK
  •          Field Angle: FOV 40° x 30°/ IFOV 2.79mrad
  •          Image Refresh Rate: 25Hz
  •          Range: -20°C to +550°C (Low/High or Auto)
  •          Accuracy: ±1.5% of reading or ±1.5°C (whichever is greater)
  •          Resolution: 0.1°C
  •          Emissivity Adjustable: 0.10~1.00
  •          Distance Compensation: 0.5~6m in 0.5m increments
  •          Spectral Response: 8~14µm
  •          Markers: Centre spot, Hot/Cold plus 6 custom spots
  •          Image Modes: IR (default), Fusion, PIP, Visual
  •          Colour Palettes: White hot, Black hot, Lava, Iron, Rainbow, Rainbow HC, Black red, High temperature highlight, Low temperature highlight

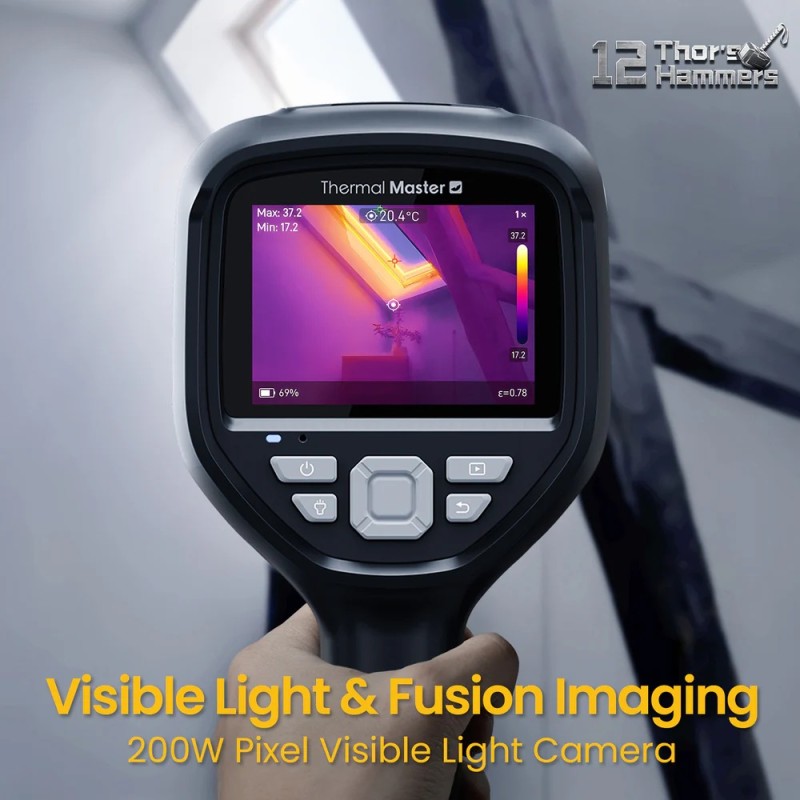

  •          IR-Fuse™: Dual-light fusion technology, IR-Blend™ continuous fusion, 0% to 100% in 1% increments (adds visible details to infrared images)

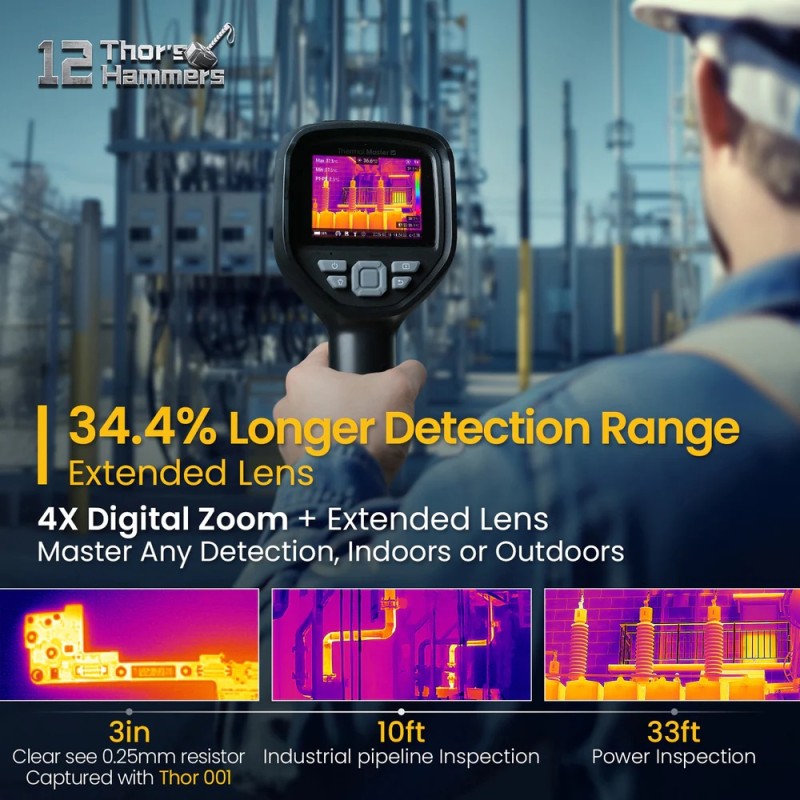

  •          Digital Zoom: 1X / 2X / 4X
  •          Memory: 32GB microSD card included (up to 220,000 images)
  •          Image Format: JPEG / MP4
  •          USB-C port for image and video download to PC
  •          Thermal Smart PC Analysis and Reporting Software included (free download)
  •          Voicetag™ Noise-Reducing Mic adds voice notes to videos
  •          Laser pointer to assist with targeting
  •          Includes a detachable Macro Lens
  •          LED flashlight
  •          Power Supply: Built-in rechargeable 21700 / 5000mAh Li-Ion battery

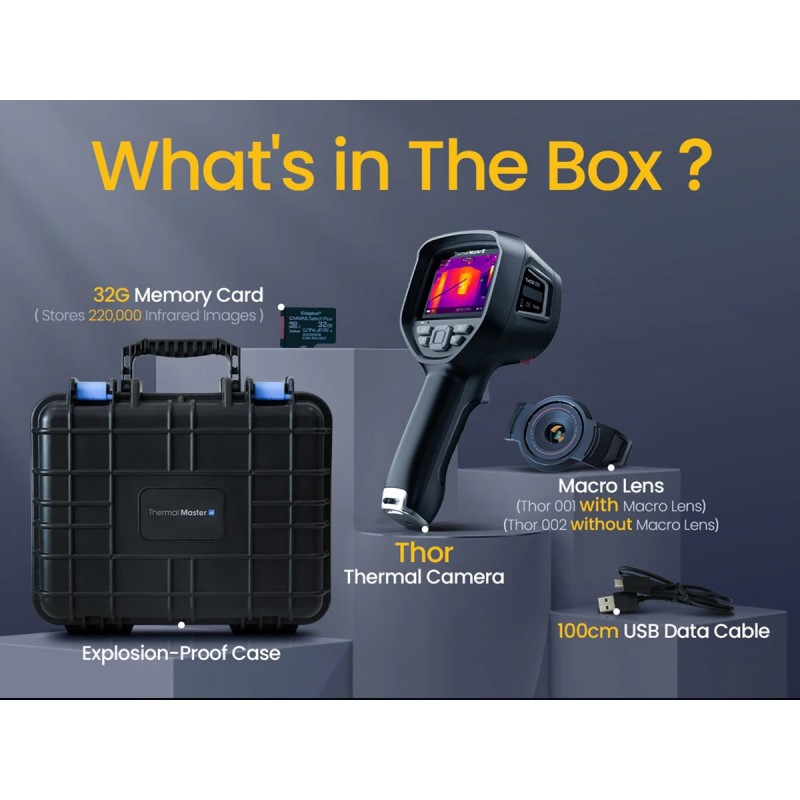

  •          c/w carry case, 32GB microSD card, Macro Lens, USB-C cable and manual

Download

THOR001 Thermal Imager Data Sheet

Download (511.64k)

THOR001 Thermal Imager User Manual

Download (1.78M)

Thermal Smart Software for THOR001 Thermal Imager

Download (194.15M)
